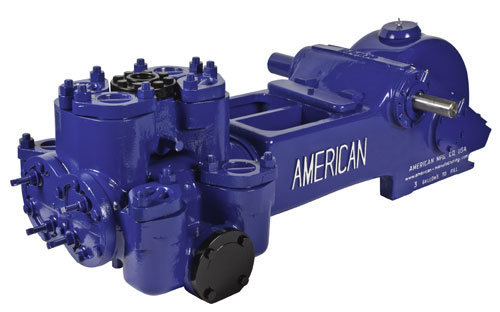

The American Model FF-AXFZ is a duplex reciprocating type power slush pump designed for maximizing volume without sacrifice of working pressure and compactness.

Its power end is a rugged, one-piece unit with integral supports for jackshaft and eccentric shaft bearings. The cover is removable for easy access to the power end components.

Connecting rods are one-piece cast alloy with renewable eccentric bushings and crosshead bushings. The one-piece skirt type cast alloy crosshead is reinforced at all load areas.

Fluid end of the FF-AXFZ is a one piece casting with conventional pot type valves. Steel studs secure valve covers, flanges and plates to the fluid end, and fluid end to power end.

All bearings are sealed in individual pressure gun lubricated housings. Eccentrics, crossheads and pins are lubricated from the power end reservoir through normal movement of parts.

American lubricator type packing glands provide positive lubrication to piston rods. This pump is equipped with American pistons, hardened liners, rods and valves.

Specifications

Pump Weight:

  • 1,495 lbs. (678 kg)

Dimensions

  • Length: 67.4"
  • Width: 30.1"
  • Height: 25"

Jackshaft Extension

  • Diameter: 1.94"
  • Length: 5"
  • Keyway: 4 7/8" L x 1/2" W x 1/2" H

Stroke Length:

  • 5" (127 mm)

Liner Size

  • Minimum: 2.5"
  • Maximum: 5"

Fluid End Type:

  • Cast Iron One Piece

No. of Pistons:

  • 2

Piston Rod Load:

  • 3,140 lbs. (1,424 kg)

Oil Capacity:

  • 3 gal. (11.5 liters)

Maximum BHP

  • Mud Service: 16.2 (12 kw)
  • Ind'l. Service: 19.7 (15 kw)

Maximum Jackshaft RPM

  • Mud Service: 439
  • Ind'l. Service: 537

Suction Connection:

  • 3" NPT 125#

Discharge Connection:

  • 2" NPT 600#

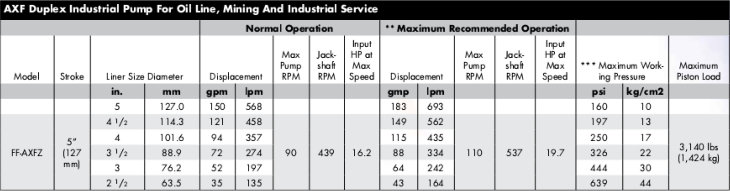

Performance Ratings

Based on 90% mechanical efficiency and 100% volumetric efficiency

Note:

All installations must contain a pressure relief valve in the discharge line near the pump to help prevent breakage.
