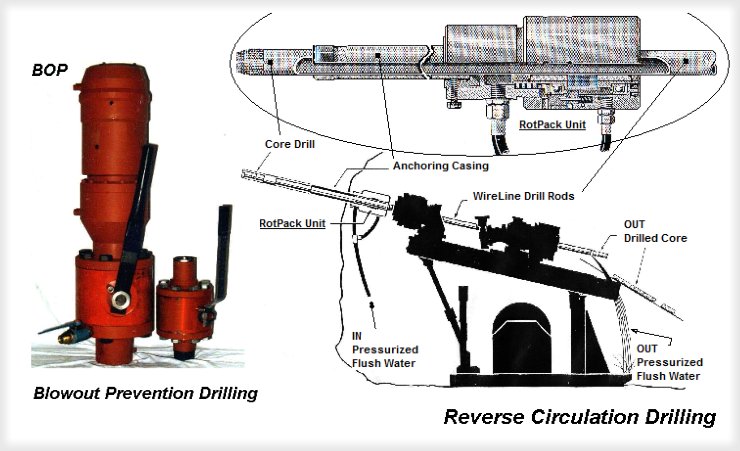

Rotpack - Rotating Packers
handles return flow from drillholes
- RotPack prevents spills when drilling through pockets of gas, fluids and radioactive materials.
- RotPack is lighter and smaller than a traditional static BlowOutPreventer
- RotPack is more cost-efficient than a traditional static BlowOutPreventer
- RotPack offers increased life time compared to traditional static BlowOutPreventer
| Product Name | Prod. # | Housing | Recommended Max Working Pressure |
Recommended Max RPM |
Unit Weight | Max Hole Size |
| RotPack S/P/H | #60900 | Steel | 175 bar 2500 psi |
1100 rpm (greased bearings) |
205kg 450 lbs |
180mm 7" |
| RotPack P/H/N | #60800 | Steel | 175 bar 2500 psi |
1300 rpm (greased bearings) |
170kg 375 lbs |
127mm 5" |
| RotPack H/N/B | #60700 | Steel | 175 bar 2500 psi |
1500 rpm (greased bearings) |
136kg 300 lbs |
97mm 4" |
| RotPack N/B/A | #60300 | Steel | 125 bar 1800 psi |
1800 rpm (sealed bearings) |
29kg 62 lbs |
76.5mm 3" |
| RotPack A/B/N (for W-casing) |
#60100NW | Aluminium | 50 bar 725 psi |
2250 rpm (sealed bearings) |
20kg 45 lbs |
76.5mm 3" |
| RotPack A/B/N (for METRIC-casing) |
#60100 | Aluminium | 50 bar 725 ps |
2250 rpm (sealed bearings) |
20kg 45 lbs |
76.5mm 3" |
